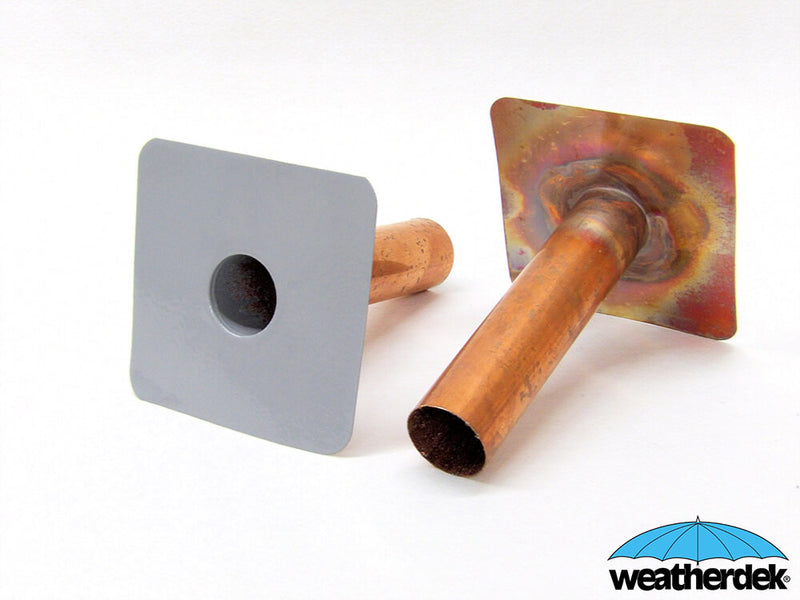

Overflow drain with PVC coating

Designed for use with Roof Drain (WDD1) Drains, Weatherdek PVC coated overflow drains provide backup protection for "trap deck" applications. Weldable PVC coated flange provides a permanent watertight seal between the Weatherdek membrane and the overflow drain

• Copper flange and outlet pipe

• PVC coated flange for welding membrane connection

• The flange can be easily modified to suite site requirements.

ADDITIONAL INFORMATION

DIMENSIONS

• Flange Height: 9" (225mm)

• Flange Width: 9" (225mm)

• Hose length: 12" (300mm)

• Outlet Hose: 2-3/4" (69mm) OD

PRODUCT SHEET

Overflow drain with PVC coating
